K8s-ingress 配置 k8s1.23.3
第一 : 解决方案
gcr.io------>替换为 gcr.dockerproxy.com
registry.k8s.io------>替换为 k8s.mirror.nju.edu.cn
第二: 下载地址:
国内的网络一言难尽.......... 浪费太多时间了
Ingress 控制器
为了让 Ingress 资源工作，集群必须有一个正在运行的 Ingress 控制器。
与作为 kube-controller-manager 可执行文件的一部分运行的其他类型的控制器不同， Ingress 控制器不是随集群自动启动的。 基于此页面，你可选择最适合你的集群的 ingress 控制器实现。
Kubernetes 作为一个项目，目前支持和维护 AWS、 GCE 和 Nginx Ingress 控制器。
Ingress
特性状态： Kubernetes v1.19 [stable]
Ingress 是对集群中服务的外部访问进行管理的 API 对象，典型的访问方式是 HTTP。
Ingress 可以提供负载均衡、SSL 终结和基于名称的虚拟托管。
说明：
入口（Ingress）目前已停止更新。新的功能正在集成至网关 API 中。
术语
为了表达更加清晰，本指南定义以下术语：
节点（Node）: Kubernetes 集群中的一台工作机器，是集群的一部分。
集群（Cluster）: 一组运行容器化应用程序的 Node，这些应用由 Kubernetes 管理。 在此示例和在大多数常见的 Kubernetes 部署环境中，集群中的节点都不在公共网络中。
边缘路由器（Edge Router）: 在集群中强制执行防火墙策略的路由器。 可以是由云提供商管理的网关，也可以是物理硬件。
集群网络（Cluster Network）: 一组逻辑的或物理的连接，基于 Kubernetes 网络模型实现集群内的通信。
服务（Service）：Kubernetes 服务（Service）， 使用标签选择算符（Selectors） 来选择一组 Pod。除非另作说明，否则假定 Service 具有只能在集群网络内路由的虚拟 IP。
Ingress 是什么？
Ingress 提供从集群外部到集群内服务的 HTTP 和 HTTPS 路由。 流量路由由 Ingress 资源所定义的规则来控制。
下面是 Ingress 的一个简单示例，可将所有流量都发送到同一 Service：
图. Ingress
通过配置，Ingress 可为 Service 提供外部可访问的 URL、对其流量作负载均衡、 终止 SSL/TLS，以及基于名称的虚拟托管等能力。 Ingress 控制器 负责完成 Ingress 的工作，具体实现上通常会使用某个负载均衡器， 不过也可以配置边缘路由器或其他前端来帮助处理流量。
Ingress 不会随意公开端口或协议。 将 HTTP 和 HTTPS 以外的服务开放到 Internet 时，通常使用 Service.Type=NodePort 或 Service.Type=LoadBalancer 类型的 Service。
环境准备
你必须拥有一个 Ingress 控制器 才能满足 Ingress 的要求。仅创建 Ingress 资源本身没有任何效果。
你可能需要部署一个 Ingress 控制器，例如 ingress-nginx。 你可以从许多 Ingress 控制器中进行选择。
理想情况下，所有 Ingress 控制器都应遵从参考规范。 但实际上，各个 Ingress 控制器操作略有不同。
说明：
确保你查看了 Ingress 控制器的文档，以了解选择它的注意事项。
ingress 部署文件 deploy-ingress.yaml
apiVersion: v1 kind: Namespace metadata: name: ingress-nginx labels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx --- # Source: ingress-nginx/templates/controller-serviceaccount.yaml apiVersion: v1 kind: ServiceAccount metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx automountServiceAccountToken: true --- # Source: ingress-nginx/templates/controller-configmap.yaml apiVersion: v1 kind: ConfigMap metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller namespace: ingress-nginx data: --- # Source: ingress-nginx/templates/clusterrole.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm name: ingress-nginx rules: - apiGroups: - '' resources: - configmaps - endpoints - nodes - pods - secrets verbs: - list - watch - apiGroups: - '' resources: - nodes verbs: - get - apiGroups: - '' resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - '' resources: - events verbs: - create - patch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch --- # Source: ingress-nginx/templates/clusterrolebinding.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm name: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- # Source: ingress-nginx/templates/controller-role.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx rules: - apiGroups: - '' resources: - namespaces verbs: - get - apiGroups: - '' resources: - configmaps - pods - secrets - endpoints verbs: - get - list - watch - apiGroups: - '' resources: - services verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses verbs: - get - list - watch - apiGroups: - networking.k8s.io resources: - ingresses/status verbs: - update - apiGroups: - networking.k8s.io resources: - ingressclasses verbs: - get - list - watch - apiGroups: - '' resources: - configmaps resourceNames: - ingress-controller-leader verbs: - get - update - apiGroups: - '' resources: - configmaps verbs: - create - apiGroups: - '' resources: - events verbs: - create - patch --- # Source: ingress-nginx/templates/controller-rolebinding.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx subjects: - kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx --- # Source: ingress-nginx/templates/controller-service-webhook.yaml apiVersion: v1 kind: Service metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller-admission namespace: ingress-nginx spec: type: ClusterIP ports: - name: https-webhook port: 443 targetPort: webhook appProtocol: https selector: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/component: controller --- # Source: ingress-nginx/templates/controller-deployment.yaml apiVersion: apps/v1 kind: DaemonSet metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller namespace: ingress-nginx spec: selector: matchLabels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/component: controller revisionHistoryLimit: 10 minReadySeconds: 0 template: metadata: labels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/component: controller spec: hostNetwork: true dnsPolicy: ClusterFirst containers: - name: controller image: registry.cn-beijing.aliyuncs.com/kole_chang/controller:v1.0.0 imagePullPolicy: IfNotPresent lifecycle: preStop: exec: command: - /wait-shutdown args: - /nginx-ingress-controller - --election-id=ingress-controller-leader - --controller-class=k8s.io/ingress-nginx - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller - --validating-webhook=:8443 - --validating-webhook-certificate=/usr/local/certificates/cert - --validating-webhook-key=/usr/local/certificates/key - --watch-ingress-without-class=true securityContext: capabilities: drop: - ALL add: - NET_BIND_SERVICE runAsUser: 101 allowPrivilegeEscalation: true env: - name: POD_NAME valueFrom: fieldRef: fieldPath: metadata.name - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace - name: LD_PRELOAD value: /usr/local/lib/libmimalloc.so livenessProbe: failureThreshold: 5 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 readinessProbe: failureThreshold: 3 httpGet: path: /healthz port: 10254 scheme: HTTP initialDelaySeconds: 10 periodSeconds: 10 successThreshold: 1 timeoutSeconds: 1 ports: - name: http containerPort: 80 protocol: TCP - name: https containerPort: 443 protocol: TCP - name: webhook containerPort: 8443 protocol: TCP volumeMounts: - name: webhook-cert mountPath: /usr/local/certificates/ readOnly: true resources: requests: cpu: 100m memory: 90Mi nodeSelector: kubernetes.io/os: linux serviceAccountName: ingress-nginx terminationGracePeriodSeconds: 300 volumes: - name: webhook-cert secret: secretName: ingress-nginx-admission --- # Source: ingress-nginx/templates/controller-ingressclass.yaml # We don't support namespaced ingressClass yet # So a ClusterRole and a ClusterRoleBinding is required apiVersion: networking.k8s.io/v1 kind: IngressClass metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: nginx namespace: ingress-nginx spec: controller: k8s.io/ingress-nginx --- # Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml # before changing this value, check the required kubernetes version # https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites apiVersion: admissionregistration.k8s.io/v1 kind: ValidatingWebhookConfiguration metadata: labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook name: ingress-nginx-admission webhooks: - name: validate.nginx.ingress.kubernetes.io matchPolicy: Equivalent rules: - apiGroups: - networking.k8s.io apiVersions: - v1 operations: - CREATE - UPDATE resources: - ingresses failurePolicy: Fail sideEffects: None admissionReviewVersions: - v1 clientConfig: service: namespace: ingress-nginx name: ingress-nginx-controller-admission path: /networking/v1/ingresses --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml apiVersion: v1 kind: ServiceAccount metadata: name: ingress-nginx-admission namespace: ingress-nginx annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook rules: - apiGroups: - admissionregistration.k8s.io resources: - validatingwebhookconfigurations verbs: - get - update --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: name: ingress-nginx-admission namespace: ingress-nginx annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook rules: - apiGroups: - '' resources: - secrets verbs: - get - create --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: ingress-nginx-admission namespace: ingress-nginx annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx-admission subjects: - kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml apiVersion: batch/v1 kind: Job metadata: name: ingress-nginx-admission-create namespace: ingress-nginx annotations: helm.sh/hook: pre-install,pre-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: template: metadata: name: ingress-nginx-admission-create labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: containers: - name: create image: registry.cn-beijing.aliyuncs.com/kole_chang/kube-webhook-certgen:v1.0 imagePullPolicy: IfNotPresent args: - create - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc - --namespace=$(POD_NAMESPACE) - --secret-name=ingress-nginx-admission env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace restartPolicy: OnFailure serviceAccountName: ingress-nginx-admission nodeSelector: kubernetes.io/os: linux securityContext: runAsNonRoot: true runAsUser: 2000 --- # Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml apiVersion: batch/v1 kind: Job metadata: name: ingress-nginx-admission-patch namespace: ingress-nginx annotations: helm.sh/hook: post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: template: metadata: name: ingress-nginx-admission-patch labels: helm.sh/chart: ingress-nginx-4.0.1 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 1.0.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: containers: - name: patch image: registry.cn-beijing.aliyuncs.com/kole_chang/kube-webhook-certgen:v1.0 imagePullPolicy: IfNotPresent args: - patch - --webhook-name=ingress-nginx-admission - --namespace=$(POD_NAMESPACE) - --patch-mutating=false - --secret-name=ingress-nginx-admission - --patch-failure-policy=Fail env: - name: POD_NAMESPACE valueFrom: fieldRef: fieldPath: metadata.namespace restartPolicy: OnFailure serviceAccountName: ingress-nginx-admission nodeSelector: kubernetes.io/os: linux securityContext: runAsNonRoot: true runAsUser: 2000
执行: kubectl apply -f deploy-ingress.yaml
kubectl get svc -n ingress-nginx
kubectl get svc
kubectl get ns
kubectl describe role ingress-nginx -n ingress-nginx
kubectl api-resources -o wide | grep ingresses
测试 ingress 域名的使用: (版本不同则配置不同)
apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: mytest-ingress spec: ingressClassName: nginx rules: - host: q.com http: paths: - path: "/" pathType: Prefix backend: service: name: my-service port: number: 80 - host: q1.com http: paths: - path: "/" pathType: Prefix backend: service: name: my-service port: number: 80

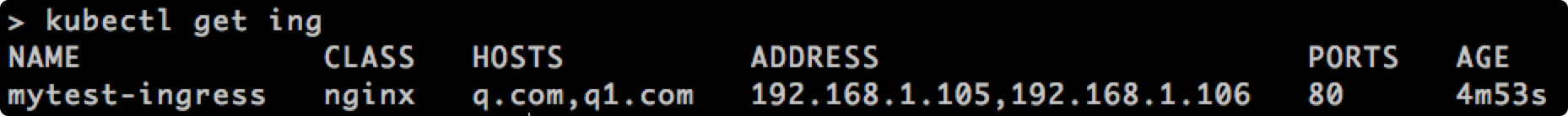

查看状态: kubectl get ing
外部网络配置:/etc/hosts
192.168.1.105 q.com
192.168.1.106 q1.com

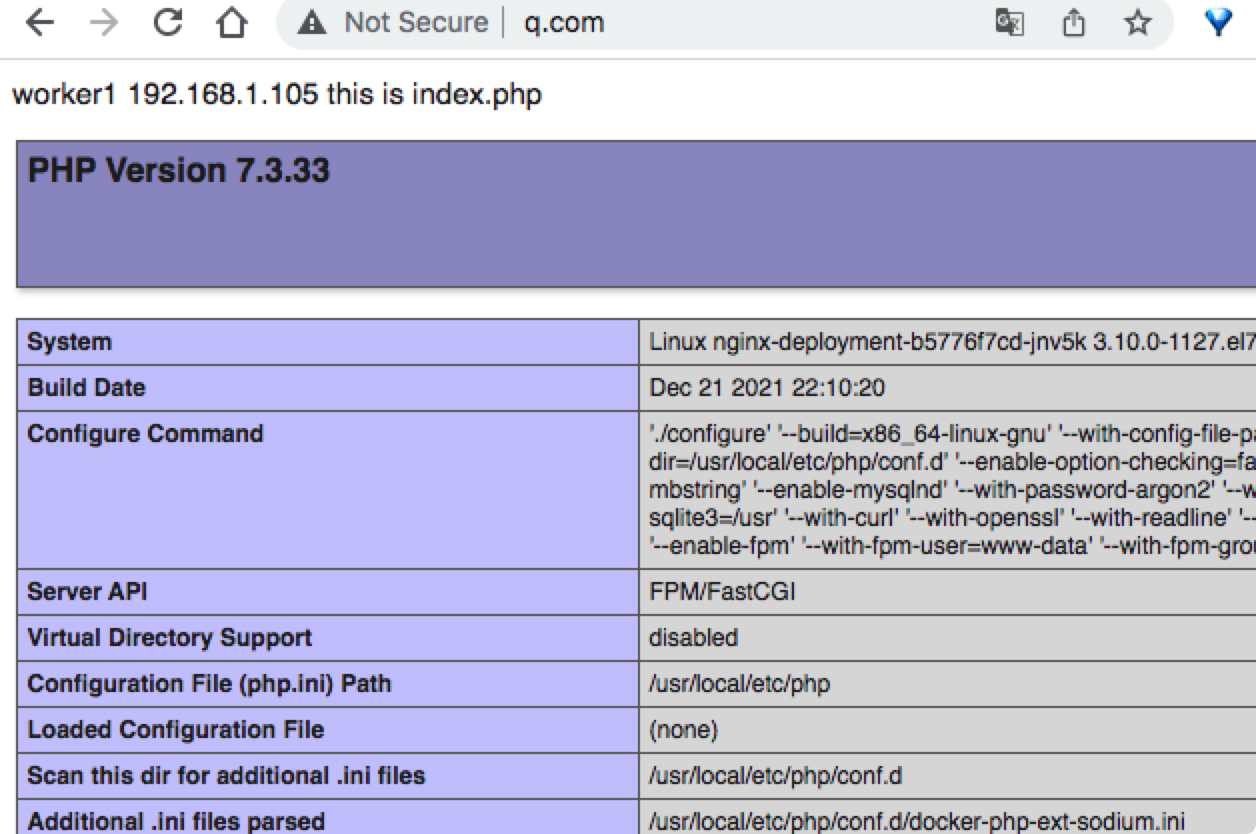

测试效果: 类似负载均衡, 可以自动切换 到不同的服务器
其它配置:
host-path-deployment.yaml
apiVersion: apps/v1 kind: Deployment #指定资源类型 metadata: name: nginx-deployment labels: app: nginx-deployment spec: replicas: 2 selector: matchLabels: app: nginx-deployment template: metadata: labels: app: nginx-deployment spec: containers: - name: my-nginx image: nginx:alpine #定义镜像，这个地方指定版本alpine ports: - containerPort: 80 volumeMounts: - name: app-www mountPath: /usr/share/nginx/html - name: app-conf mountPath: /etc/nginx/conf.d - name: my-php image: php:7.3.33-fpm ports: - containerPort: 9000 volumeMounts: - name: app-www mountPath: /var/www/html volumes: - name: app-www hostPath: path: /root/nginx-php/www-data - name: app-conf hostPath: path: /root/nginx-php/conf
需要在指定机器上指定配置文件:
需将配置文件放到指定的目录: 类似docker-compose
/root/nginx-php/www-data
/root/nginx-php/conf
在pod所在的节点创建测试的PHP文件和Nginx配置文件
/root/nginx-php/www-data
# 创建 www-data 文件夹 mkdir -p /root/nginx-php/www-data vim index.php # index.php内容如下 <?php echo "this is php";
# 创建默认的default.conf文件
# 内容如下 注意我们这里fastcgi_pass用了localhost
mkdir -p /root/nginx-php/conf
vim default.conf
server {
listen 80 default;
index index.php index.html index.htm;
server_name localhost;
root /usr/share/nginx/html;
location ~ \.php {
include fastcgi_params;
fastcgi_pass localhost:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME /var/www/html/$fastcgi_script_name;
}
}
注意：上述fastcgi_pass的值是 localhost:9000, 这和pod的机制有关, pod内的container 按 localhost 访问,
services.yaml配置
apiVersion: v1 kind: Service metadata: name: my-service labels: app: my-service spec: selector: app: nginx-deployment ports: - protocol: TCP port: 80 targetPort: 80 nodePort: 30088 #节点端口，外部通过节点ip加端口可访问 type: NodePort

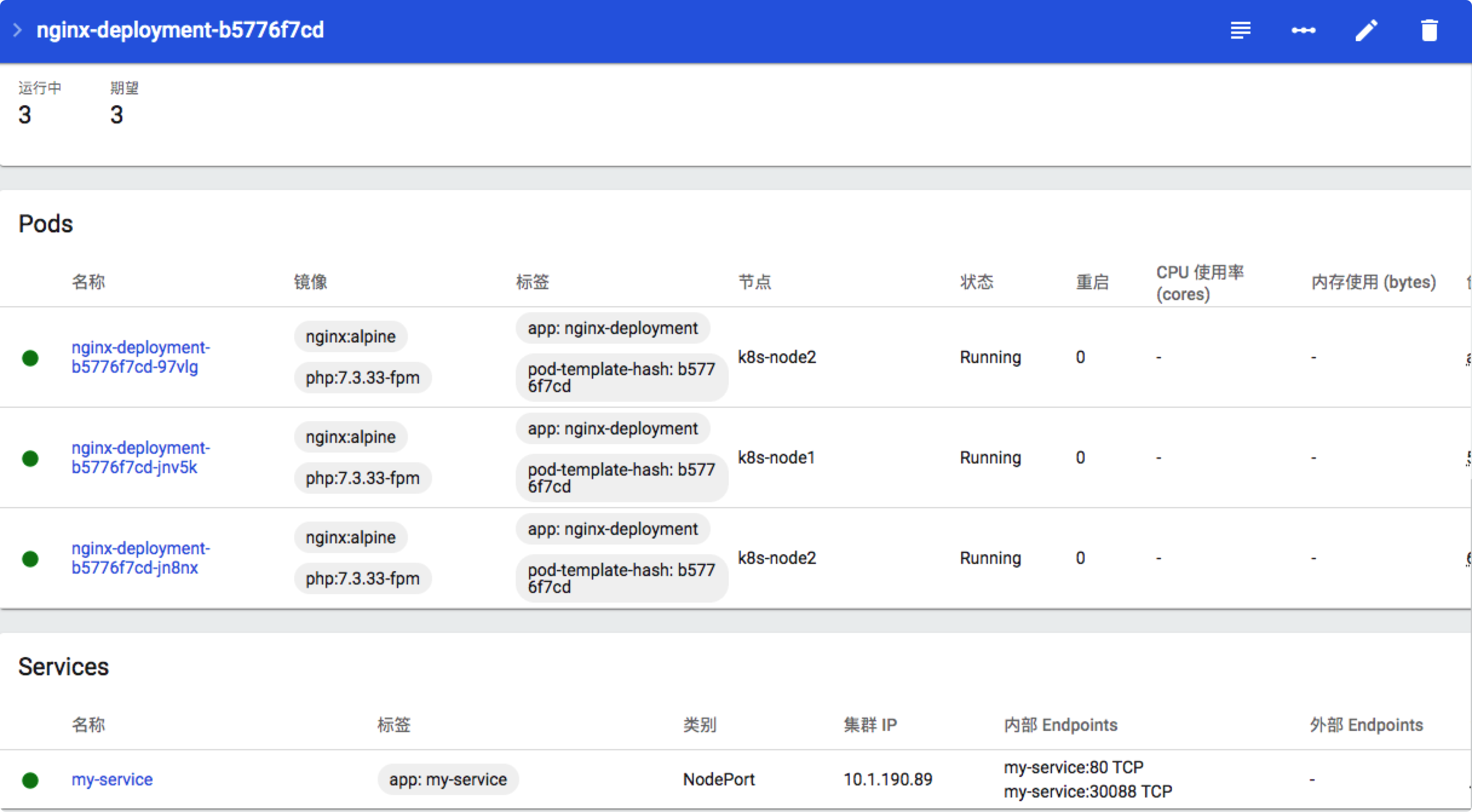

deployment.yaml + services.yaml 执行
ingress说明文档: https://kubernetes.io/zh/docs/concepts/services-networking/ingress/
