nginx-php k8s 配置方式

分类:K8S |

配置方式一 POD emptyDir:

vim nginx-php-emptyDir-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-php
spec:
  containers:
  - name: my-nginx
    image: nginx:1.15.11
    ports:
      - containerPort: 80
        hostPort: 8080
    volumeMounts:
      - name: app-www
        mountPath: /usr/share/nginx/html
  - name: my-php
    image: php:7.3-fpm
    ports:
      - containerPort: 9000
    volumeMounts:
      - name: app-www
        mountPath: /var/www/html
  volumes:
    - name: app-www
      emptyDir: {}

在pod所在的节点创建测试的PHP文件和Nginx配置文件

# 创建data文件夹
mkdir data
vi index.php
# index.php内容如下
echo "this is php";
vi index.html
# 内容如下

# 创建默认的default.conf文件

vi default.conf

# 内容如下 注意我们这里fastcgi_pass用了localhost

server {
  listen 80 default;
  index index.php index.html index.htm;
  server_name localhost;
  root /usr/share/nginx/html;
  location ~ \.php {
    include fastcgi_params;
    fastcgi_pass localhost:9000;
    fastcgi_index index.php;
    fastcgi_param SCRIPT_FILENAME /var/www/html/$fastcgi_script_name;
  }
}

注意:上述fastcgi_pass的值是 localhost:9000

把测试的文件拷贝到容器中

# 查看nginx容器的名字
docker ps
docker cp ./index.php [nginx容器的名称]:/usr/share/nginx/html
docker cp ./default.conf [nginx容器的名称]:/etc/nginx/conf.d

docker restart [nginx容器的名称]

验证:

# 外部访问php文件
curl nginxIP:8080/index.php


# 分别在nginx 和 php 中执行
curl -i http://127.0.0.1
# 访问成功,证明一个pod中的所有容器网络是共享的,可以用localhost访问到


# 查看php容器中的/var/www/html是否有我们刚上传的index.php文件
docker exec -it 你的php容器的名字 /bin/bash

# 进入容器后执行
cd /var/www/html
ls

# 我们发现了我们刚上传到此目录的index.php文件,
# 所以nginx的/usr/share/nginx/html


目录和PHP的/var/www/html目录通过volume:emptyDir已经完成了共享

配置方式二 POD hostPath: 重启所有 pod的方式之一:

kubectl replace --force -f nginx-php-hostPath-pod.yaml

vim nginx-php-hostPath-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: nginx-php
spec:
  containers:
  - name: my-nginx
    image: nginx:1.15.11
    ports:
      - containerPort: 80
        hostPort: 8080
    volumeMounts:
      - name: app-www
        mountPath: /usr/share/nginx/html
      - name: app-conf
        mountPath: /etc/nginx/conf.d
  - name: my-php
    image: php:7.3-fpm
    ports:
      - containerPort: 9000
    volumeMounts:
      - name: app-www
        mountPath: /var/www/html
  volumes:
    - name: app-www
      hostPath:
        path: /root/nginx-php/www-data
    - name: app-conf
      hostPath:
        path: /root/nginx-php/conf

需要在指定机器上指定配置文件:

需将配置文件放到指定的目录: 类似docker-compose

/root/nginx-php/www-data

/root/nginx-php/conf

使用 kubectl get pod -o wide 查看状态:



如果出现 ContainerCreating 可以使用以下命令查看详情

kubectl describe pod nginx-php

[192.168.1.104] root ➜  ~/nginx-php nginx-php kubectl describe pod nginx-php
Name:		nginx-php
Namespace:	default
Node:		worker2/192.168.1.106
Start Time:	Sun, 30 Jan 2022 14:55:54 +0800
Labels:		<none>
Status:		Pending
IP:
Controllers:	<none>
Containers:
  my-nginx:
    Container ID:
    Image:		nginx:1.15.11
    Image ID:
    Port:		80/TCP
    State:		Waiting
      Reason:		ContainerCreating
    Ready:		False
    Restart Count:	0
    Volume Mounts:
      /etc/nginx/conf.d from app-conf (rw)
      /usr/share/nginx/html from app-www (rw)
    Environment Variables:	<none>
  my-php:
    Container ID:
    Image:		php:8.1-fpm
    Image ID:
    Port:		9000/TCP
    State:		Waiting
      Reason:		ContainerCreating
    Ready:		False
    Restart Count:	0
    Volume Mounts:
      /var/www/html from app-www (rw)
    Environment Variables:	<none>
Conditions:
  Type		Status
  Initialized 	True
  Ready 	False
  PodScheduled 	True
Volumes:
  app-www:
    Type:	HostPath (bare host directory volume)
    Path:	/root/nginx-php/www-data
  app-conf:
    Type:	HostPath (bare host directory volume)
    Path:	/root/nginx-php/conf
QoS Class:	BestEffort
Tolerations:	<none>
Events:
  FirstSeen	LastSeen	Count	From			SubObjectPath			Type		Reason			Message
  ---------	--------	-----	----			-------------			--------	------			-------
  5m		5m		1	{default-scheduler }					Normal		Scheduled		Successfully assigned nginx-php to worker2
  5m		5m		2	{kubelet worker2}					Warning		MissingClusterDNS	kubelet does not have ClusterDNS IP configured and cannot create Pod using "ClusterFirst" policy. Falling back to DNSDefault policy.
  5m		5m		1	{kubelet worker2}	spec.containers{my-nginx}	Normal		Pulled			Container image "nginx:1.15.11" already present on machine
  5m		5m		1	{kubelet worker2}	spec.containers{my-nginx}	Normal		Created			Created container with docker id 745f8ed540d9; Security:[seccomp=unconfined]
  5m		5m		1	{kubelet worker2}	spec.containers{my-nginx}	Normal		Started			Started container with docker id 745f8ed540d9
  5m		5m		1	{kubelet worker2}	spec.containers{my-php}		Normal		Pulling			pulling image "php:8.1-fpm"

这里的原因是: pulling image "php:8.1-fpm"

5m 5m 1 {kubelet worker2} spec.containers{my-php} Normal Pulling pulling image "php:8.1-fpm"

配置方式三 service + deployment:deployment yaml:

apiVersion: extensions/v1beta1
kind: Deployment #指定资源类型
metadata:
  name: nginx-deployment
  labels:
    app: nginx-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-deployment
  template:
    metadata:
      labels:
        app: nginx-deployment
    spec:
      containers:
      - name: my-nginx
        image: nginx:alpine #定义镜像,这个地方指定版本alpine
        ports:
          - containerPort: 80
        volumeMounts:
          - name: app-www
            mountPath: /usr/share/nginx/html
          - name: app-conf
            mountPath: /etc/nginx/conf.d
      - name: my-php
        image: php:7.3.33-fpm
        ports:
          - containerPort: 9000
        volumeMounts:
          - name: app-www
            mountPath: /var/www/html
      volumes:
        - name: app-www
          hostPath:
            path: /root/nginx-php/www-data
        - name: app-conf
          hostPath:
            path: /root/nginx-php/conf

service.yaml

apiVersion: v1
kind: Service
metadata:
  name: my-service
  labels:
      app: my-service

spec:
  selector:
    app: nginx-deployment
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    nodePort: 30088 #节点端口,外部通过节点ip加端口可访问
  type: NodePort

nginx 和 php 的配置文件参考 配置方式二

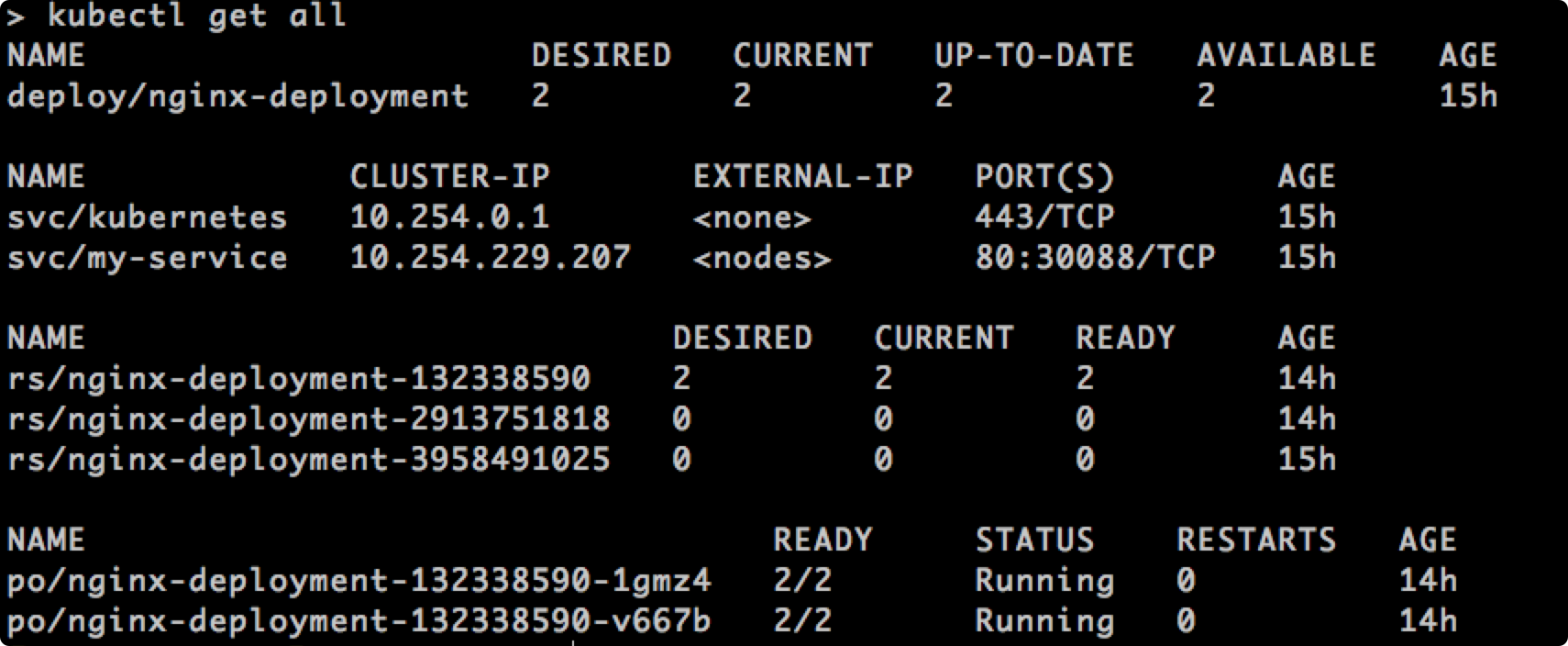

使用命令查看所有状态:

kubectl get all

or

kubectl get all -o wide
